Portable DIY 18650 Power Bank Enclosure

Modular Power Core Integration

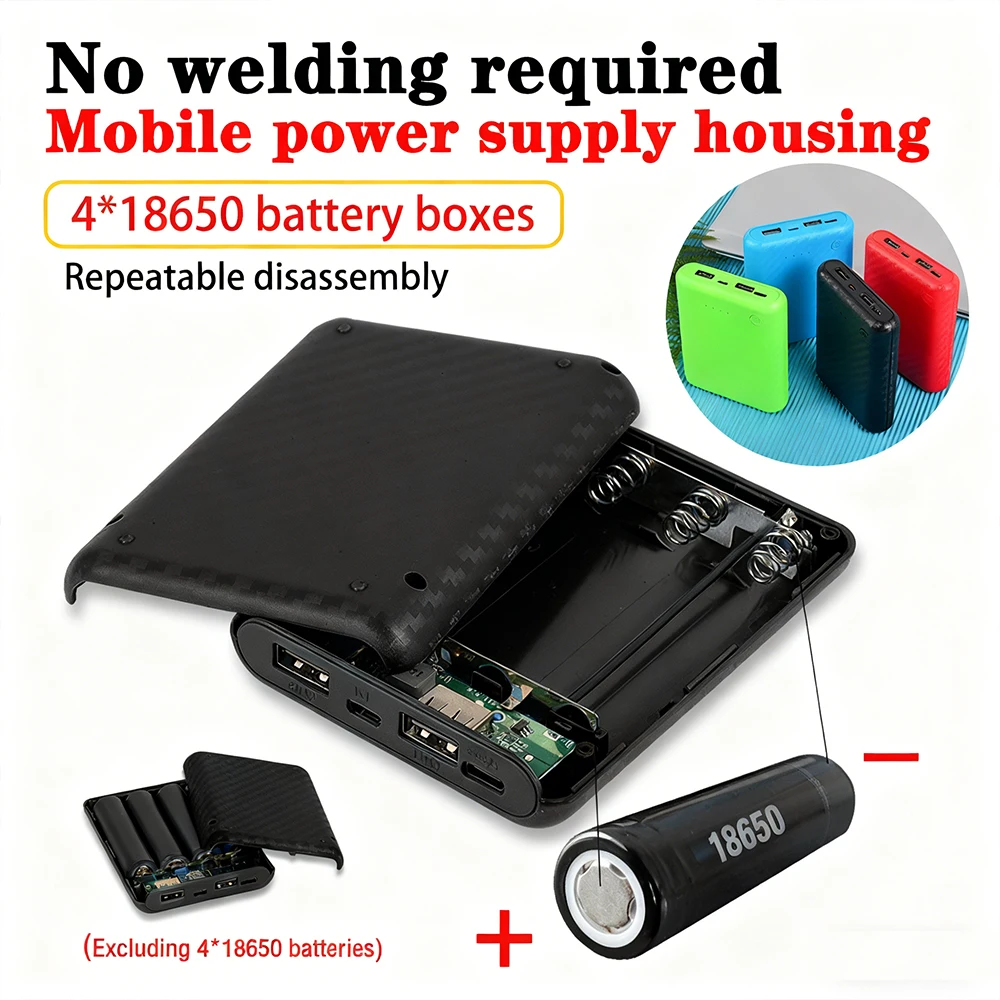

The DIY 18650 Power Bank Enclosure is a practical, solderless solution for individuals seeking to construct a custom portable charging device with readily available 18650 cells. This design prioritizes user accessibility and component interchangeability. The core advantage lies in its "no welding required" assembly, which significantly lowers the barrier to entry for electronics enthusiasts and casual users alike. This is a crucial distinction.

This solderless approach means that specialized tools like soldering irons are not necessary for assembly. Users simply insert the 18650 batteries into their designated slots, and the internal contacts establish the electrical connections. This simplifies the build process considerably, making it approachable for those without extensive electronics experience. It also accelerates the assembly time, allowing for quick deployment of a functional power bank.

Unlike traditional DIY power bank kits that often necessitate intricate soldering for battery connections or circuit board integration, this enclosure streamlines the entire process. The design eliminates the risk of cold solder joints or short circuits due to improper soldering, a common failure point in less user-friendly kits. This makes the unit more reliable for the average user.

Versatile Charging Interfaces

The enclosure features multiple input and output ports, enhancing its utility. Visible are both Micro USB and Type-C input ports, alongside dual USB-A output ports. This broad compatibility ensures the power bank can be charged using common cables and can, in turn, charge a wide array of modern devices. A power display indicator is also integrated.

Having both Micro USB and Type-C inputs provides flexibility for users who may have different charging cables readily available. The inclusion of Type-C is particularly forward-looking, aligning with the increasing adoption of this standard across consumer electronics for faster charging and reversible connectivity. Dual USB-A outputs allow for simultaneous charging of two devices, a significant convenience for users with multiple gadgets.

Compared to older power bank designs that might only offer a single Micro USB input and one output, this enclosure provides enhanced versatility. The dual input options mitigate the frustration of needing a specific cable, while the dual outputs cater to the multi-device user. This is a clear upgrade in functionality.

Durable and Serviceable Construction

The housing is constructed from a visible plastic material, available in multiple colors such as black, blue, green, and red. The design emphasizes repeatable disassembly, suggesting a focus on long-term serviceability and component replacement. Its compact dimensions, approximately 103mm x 80mm x 24mm, make it highly portable.

The choice of plastic for the shell provides a balance of durability and lightweight characteristics, suitable for a portable device. The textured finish on some variants, like the carbon fiber pattern on the black model, offers improved grip and a more premium aesthetic. The ability to repeatedly disassemble the unit is a significant advantage for maintenance or future upgrades.

Many consumer electronics are designed for single-use or difficult repair, often requiring destructive methods to access internal components. This enclosure, by contrast, promotes a repair-friendly philosophy. If a component fails, or if a user wishes to upgrade their 18650 cells, the process is straightforward and non-destructive. This extends the product's lifespan.

Performance and Efficiency Considerations

While specific internal circuit board details are not fully visible, the presence of multiple input/output ports and a power display implies a robust charging management system. The stated output is 5V/2.4A, with input also at 5V/2.4A. This indicates a capability for reasonably fast charging for most mobile devices.

An output of 5V/2.4A translates to 12 watts of power, which is sufficient for charging most smartphones and smaller tablets at a respectable speed. This is not the fastest charging available, but it is a widely compatible and safe standard for a broad range of devices. The matching input current ensures the power bank itself can be recharged efficiently.

Many basic power banks offer slower charging rates, often limited to 1A or 1.5A. This enclosure's 2.4A output provides a noticeable improvement in charging speed, reducing downtime for connected devices. It offers a practical balance between charging performance and battery longevity, avoiding excessive heat generation.

The DIY Advantage and Cost-Effectiveness

This product is essentially a shell and circuit board, requiring the user to supply their own 18650 batteries. This DIY approach offers significant cost savings and customization options. Users can select batteries based on their desired capacity and quality, rather than being limited by pre-built solutions.

The ability to source 18650 cells independently means users can often achieve a higher capacity-to-cost ratio than purchasing a fully assembled power bank. It also allows for the use of reputable, high-quality cells, which can improve overall safety and longevity. This is a smart financial decision.

Unlike proprietary battery packs where replacement cells are expensive or unavailable, the 18650 standard is widely adopted and accessible. This ensures long-term viability and reduces electronic waste, as only the cells need replacement when they degrade, not the entire unit. This is a sustainable choice.

Operational Simplicity and User Feedback

Operation is straightforward, with a clearly marked switch for power control and a power display to indicate charge status. The design is intuitive, minimizing the learning curve for new users. The repeatable disassembly feature further reinforces its user-friendly nature.

The power display is a critical feature, allowing users to monitor the remaining charge and plan their recharges effectively. This prevents unexpected power depletion, a common frustration with simpler power banks lacking such indicators. A simple switch makes operation easy.

Many budget power banks omit a clear power indicator, leaving users guessing about remaining capacity. This enclosure integrates essential user feedback mechanisms, providing a more refined and predictable user experience. It enhances practical usability.

This portable DIY power bank enclosure offers a compelling blend of customization, repairability, and modern connectivity. Its solderless design democratizes power bank construction, allowing users to leverage readily available 18650 cells for a personalized charging solution. Imagine the convenience of always having a reliable power source, built to your specifications, ready to charge your devices on the go. Envision the satisfaction of knowing you can easily maintain or upgrade your power bank, extending its life and reducing electronic waste. This enclosure provides the foundation for a truly adaptable and long-lasting portable power solution, empowering users with control over their mobile charging needs.
